CAC30122L is a 120W(P3dB) unmatched GaN power amplifier. It operates perfectly from DC to 3GHz with 28 volts rail, offers a general purpose, broadband, high power and high efficiency wireless pulse or CW communication application.

·DC– 3GHz
·Operating Drain Voltage: +28V
·21.5dB small signal Gain @0.8GHz
·20dB Gain @ 50dBm	0.8GHz
·51dBm CW Peak Power
·75% Drain Efficiency @peak power	0.8GHz

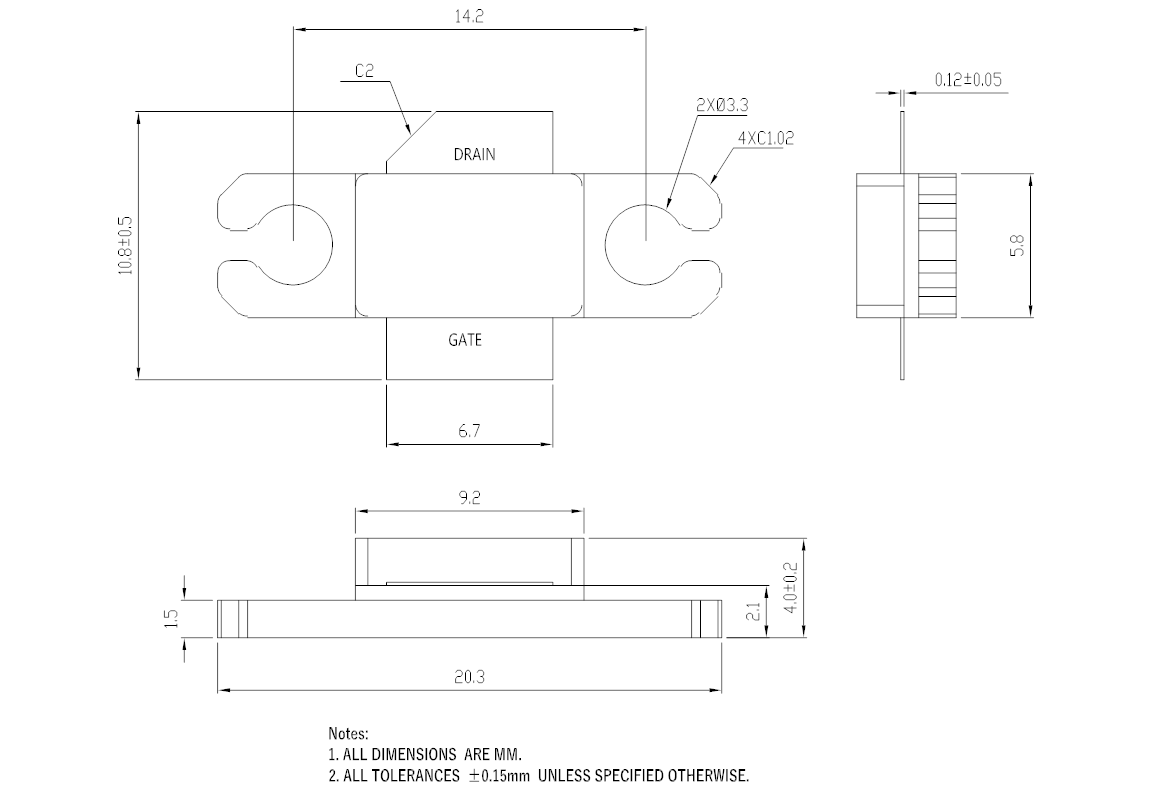

·NI360 2 Lead flange Ceramic package(MSL3	260℃ per JEDEC J-STD-020)
·ESD Level: HBM TBD ; CDM TBD
·ROHS compatible

Parameter Conditions Min Typ Max Unit

Frequency 800 MHz

Output P3dB CW +51.5 dBm

Gain @ 50dBm CW 19 dB

Drain efficiency @Psat CW 75 %

•  3GPP 4G LTE/5G NR massive MIMO basestation
•  Driver amplifier for micro-base and macro-base Stations
• Active antenna array
• Pico/Small Cell
• Test Instrumentation
• Industrial, scientific, and medical
• Wideband amplifiers
