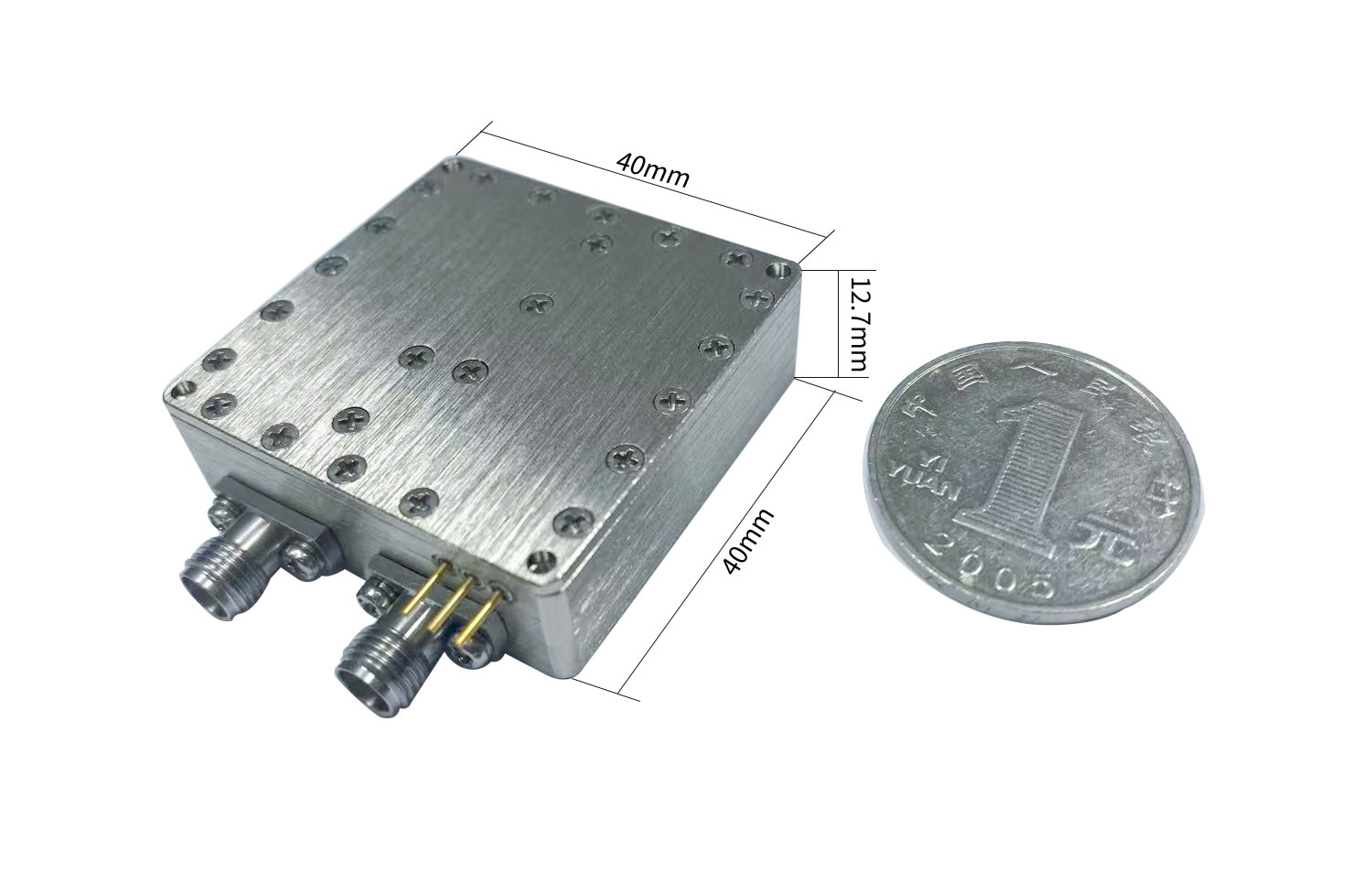

PDRO
Features:
1. Output frequency range from 1GHz to 32GHz
2. Reference Frequency 30MHz to 400MHz
3. Wide operating temperature
4. Ultra low phase noise
5. Low power consumption
6. Low Spurious
1. Output frequency range from 1GHz to 32GHz
2. Reference Frequency 30MHz to 400MHz
3. Wide operating temperature
4. Ultra low phase noise
5. Low power consumption
6. Low Spurious
| Frequency range (GHz) | 1~16 | 16~32 |
| Output Level (dBm) | ≥13 OR ≥17 | ≥13 |
| Reference Frequency/Phase Noise | 100MHz/-157dBc/Hz@1kHz | |
| Reference input power (dBm) | +3 ~ +10 | |
| System phase noise floor @100MHz | -140dBc/Hz@100Hz | |
| -158dBc/Hz@1kHz | ||
| -165dBc/Hz@10kHz | ||
| -165dBc/Hz@100kHz | ||

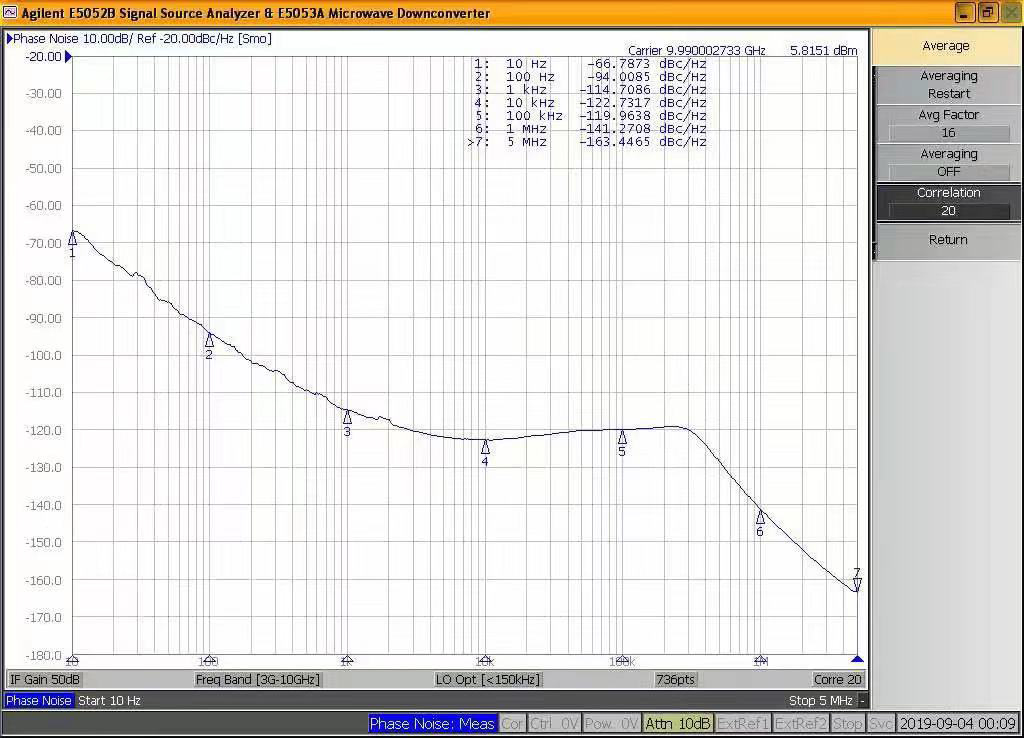

| Phase Noise | See the Phase Noise Envelope | |
| Spurious (dBc) | ≥70 | |
| Harmonics (dBc) | ≥20 | |
| Power Supply (V/mA) | ≤+12/240 (Output Level > 13 dBm) | |
| Lock Detector | TTL High In Locked | |
| Operating Temperature (℃) | -40 ~ +85 | |
| Storage Temperature (℃) | -55 ~ +95 | |
Phase Noise
| Phase Noise | 1GHz | 2GHz | 4GHz | 5GHz | 10GHz | 12GHz | 15GHz | 18GHz | 20GHz |
|---|---|---|---|---|---|---|---|---|---|
| dBc/Hz@100Hz | -108 | 102 | -96 | -95 | -88 | -88 | -83 | -83 | -83 |
| dBc/Hz@1kHz | -133 | -126 | -120 | -118 | -113 | -110 | -102 | -108 | -108 |
| dBc/Hz@10kHz | -135 | -131 | -126 | -125 | -120 | -118 | -105 | -114 | -113 |
| dBc/Hz@100kHz | -135 | -131 | -126 | -125 | -120 | -120 | -110 | -114 | -113 |
| dBc/Hz@1MHz | -140 | -140 | -140 | -140 | -140 | -140 | -140 | -138 | -136 |
