CAC30251 is a 250W(P3dB) discrete GaN power amplifier. It operates perfectly from DC to 3GHz with 28 volts rail, offers a general purpose, broadband, high power and high efficiency wireless pulse or CW communication application.

DC – 3GHz
Operating Drain Voltage: +28V
18dB small signal Gain @2.6GHz
15dB Gain @ 53dBm	2.6GHz
53.5dBm CW Peak Power
63.5% Drain Efficiency @53.5dBm	2.6GHz

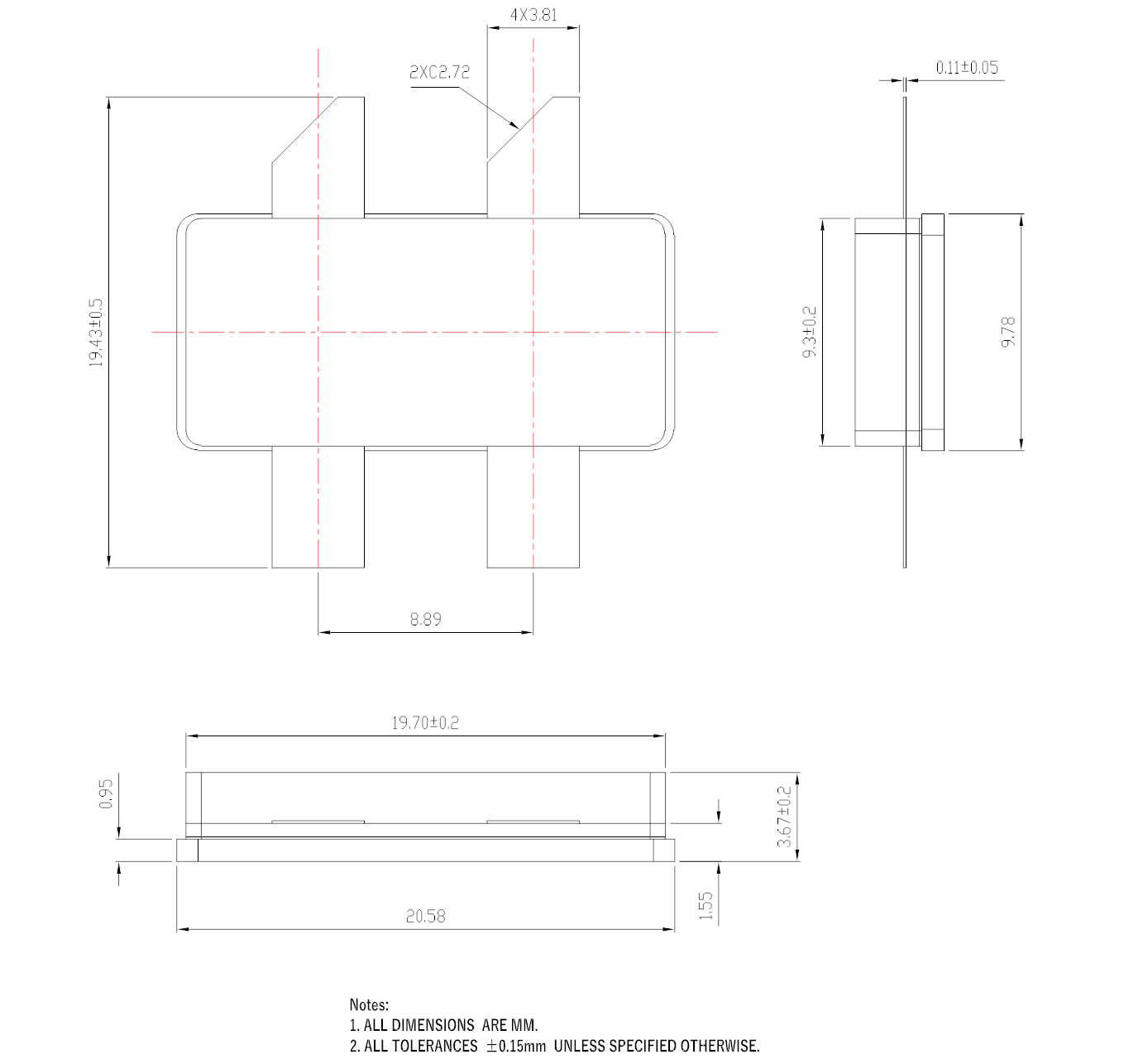

NI780 4 Lead flange Ceramic package(MSL3	260℃ per JEDEC J-STD-020)
ESD Level: HBM TBD ; CDM TBD
ROHS compatible

Parameter Conditions Min Typ Max Unit

Frequency 2600 MHz

Output P3dB CW +53.5 dBm

Gain @ P3dB CW 15 dB

Drain efficiency @P3dB CW 63.5 %

• 3GPP 4G LTE/5G NR massive MIMO basestation
• Driver amplifier for micro-base and macro-base Stations
• Active antenna array
• Pico/Small Cell
• Test Instrumentation
• Industrial, scientific, and medical
• Wideband amplifiers
