CAC30251LW is a 250W(P3dB) pre-matched GaN power amplifier. It operates perfectly from 2 to 3GHz with 28 volts rail, offers a general purpose, broadband, high power and high efficiency wireless pulse or CW communication application.

·2 – 3GHz
·Operating Drain Voltage: +28V
·20dB small signal Gain @2.3GHz
·17dB Gain @ 53.5dBm	2.3GHz
·53.8dBm CW Peak Power
·66% Drain Efficiency @53.8dBm	2.3GHz

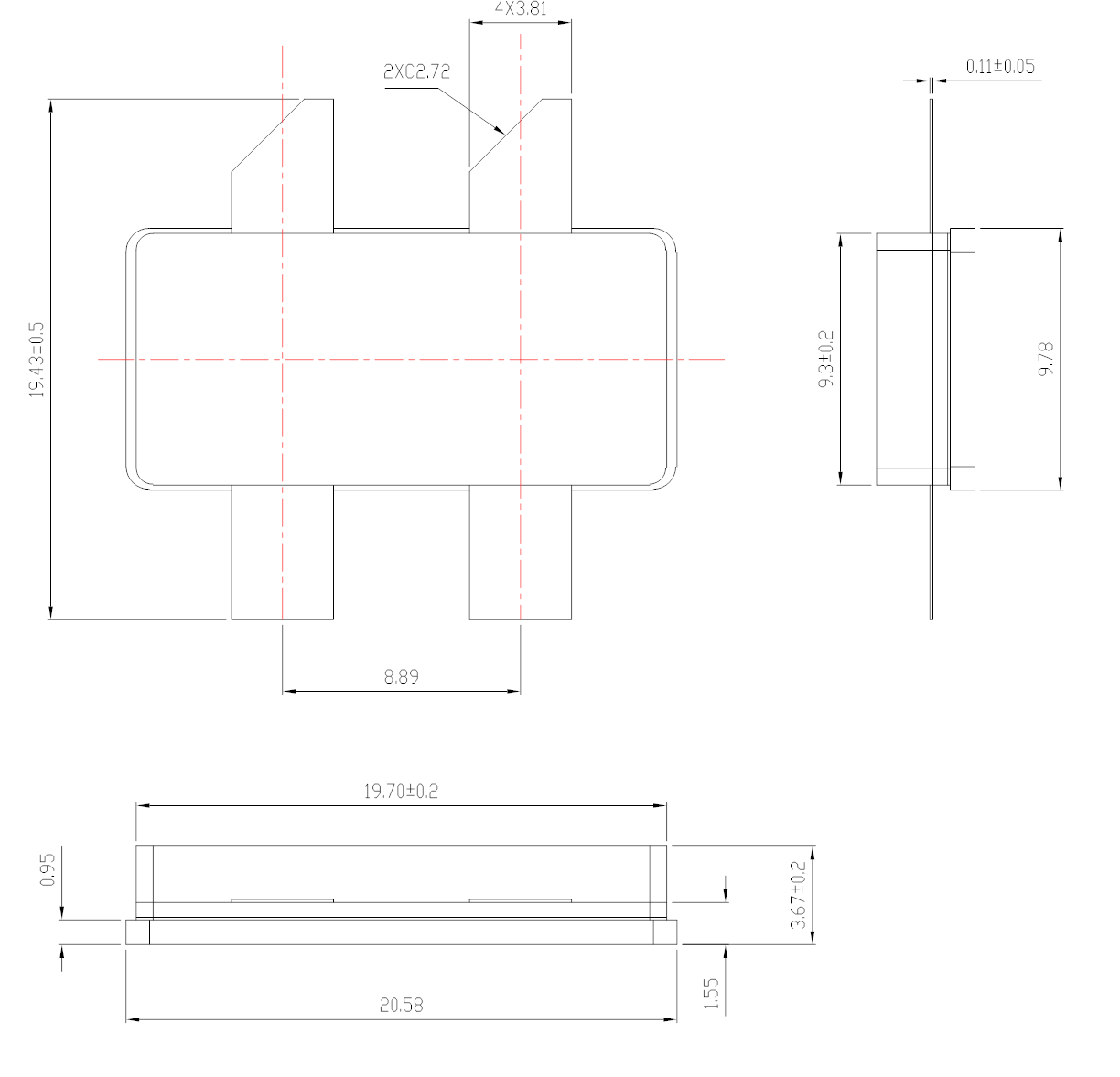

·NI780 4 Lead flange Ceramic package(MSL3	260℃ per JEDEC J-STD-020)
·ESD Level: HBM TBD ; CDM TBD
·ROHS compatible

Parameter Conditions Min Typ Max Unit

Frequency 2300 MHz

Output P3dB CW +53.5 dBm

Gain @ P3dB CW 17 dB

Drain efficiency @P3dB CW 66 %

• 3GPP 4G LTE/5G NR massive MIMO basestation
• Driver amplifier for micro-base and macro-base Stations
• Active antenna array
• Pico/Small Cell
• Test Instrumentation
• Industrial, scientific, and medical
• Wideband amplifiers
