POWER AMPLIFIER
Description
CAC50101L is a 100W(P5dB) input pre-matched GaN power amplifier. It operates perfectly from DC to 5GHz with 28 volts rail, offers a general purpose, broadband, high power and high efficiency wireless pulse or CW wideband communication application.
Download
Key Features
| ·DC– 5GHz
|
| ·Operating Drain Voltage: +28V
|
| ·15dB small signal Gain @5GHz
|
| ·13dB Gain @ 50dBm | 5GHz
|
| ·50.5dBm CW Peak Power
|
| ·65% Drain Efficiency @peak power | 5GHz
|
| ·NI360 2 Lead flange Ceramic package(MSL3 | 260℃ per JEDEC J-STD-020)
|
| ·ESD Level: HBM TBD ; CDM TBD
|
| ·ROHS compatible |
Specification
| Parameter Conditions Min Typ Max Unit
|
| Frequency 5000 MHz
|
| Output P5dB CW +50.0 dBm
|
| Gain @ 50dBm CW 13 dB
|
| Drain efficiency @Psat CW 65 % |
Applications
-
DC– 5GHz
-
Operating Drain Voltage: +28V
-
15dB small signal Gain @5GHz
-
13dB Gain @ 50dBm, 5GHz
-
50.5dBm CW Peak Power
-
65% Drain Efficiency @peak power,5GHz
-
NI360 2 Lead flange Ceramic package(MSL3, 260℃ per JEDEC J-STD-020)
-
ESD Level: HBM TBD ; CDM TBD
-
ROHS compatible

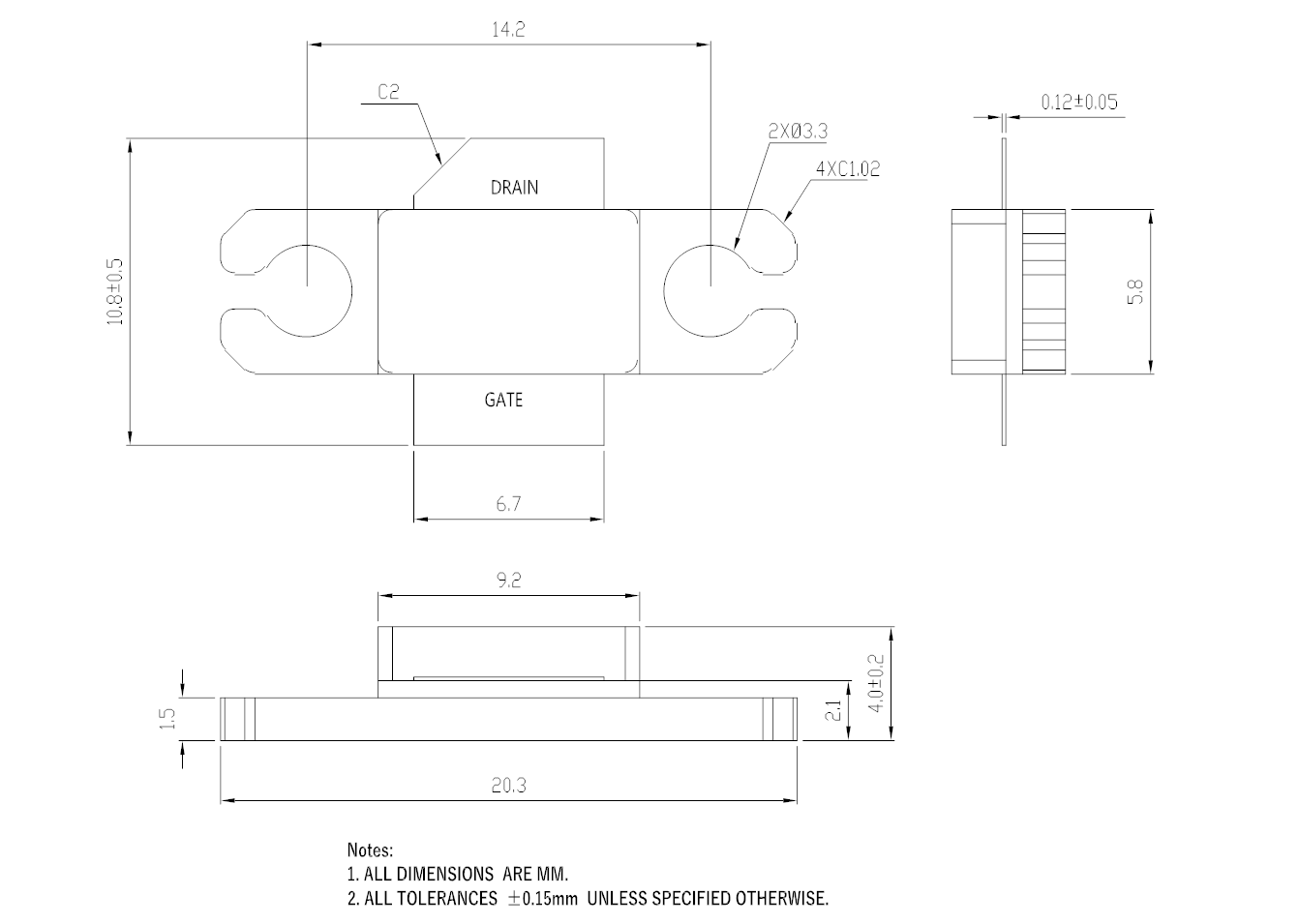

Outline Drawing

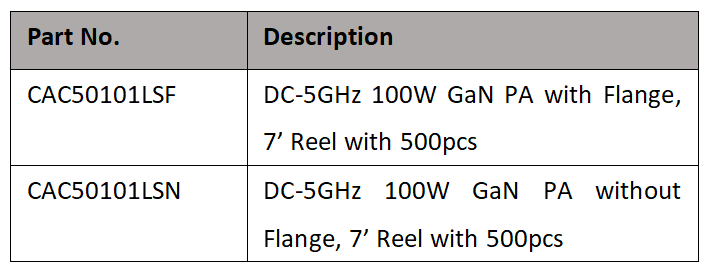

Ordering Information
