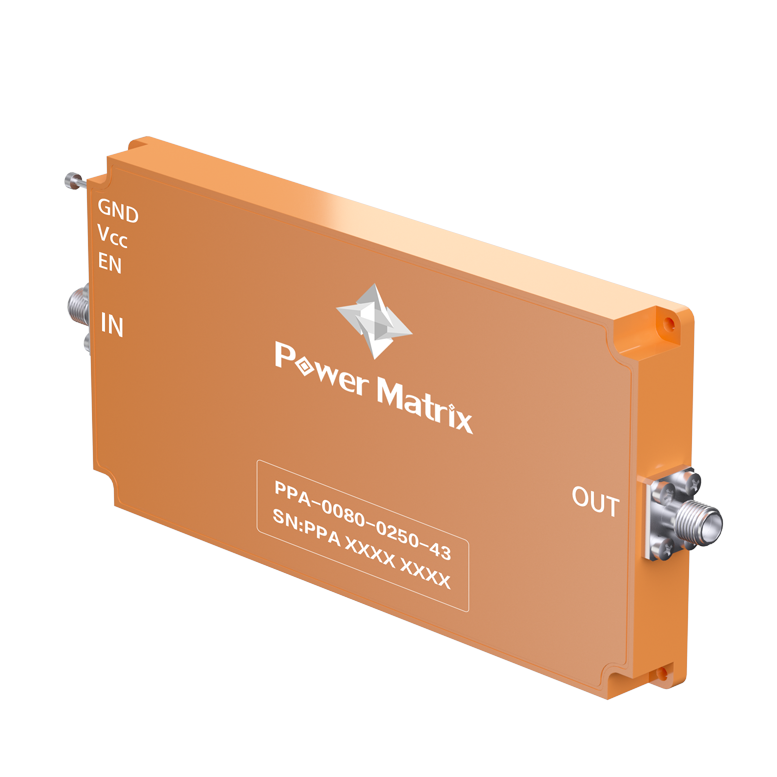

The PPA-0080-0250-43 is a High Power Amplifier providing an output power of 43 dBm and a gain of 41 dB. With compact package size, modularity and reliable quality, the product ideal for a wide range of applications.

Frequency Range (GHz)	0.8 to 2.5
Output Power (dBm)	43
Small Signal Gain (dB)	41
Operating Voltage	32 VDC
Package Dimensions (L×W×H)	120×60×12 mm
Connectors	SMA Female

Frequency Start (GHz)	0.8
Frequency Stop (GHz)	2.5
Output Power (dBm)	43
Gain (dB)	41
Gain flatness (dB)	±1.5
VSWR IN	1.6:1
Power supply (V)	32 VDC
Current (A)	1.8
Max. Input DC (no damage) (V)	36
Max. RF input power (dBm)	15
Operating Temperature (°C)	-45 to 85
Storage Temperature (°C)	-55 to 125

· Wireless communication equipment
· Test and measurement equipment
· Navigation and aerospace
· Commercial radars
· General-purpose transmitter amplification
