ULTRA-WIDEBAND POWER AMPLIFIER
Description
The PPA-2700-3200-43 is a High Power Amplifier providing an output power of 43 dBm and a gain of 40 dB. With compact package size, modularity and reliable quality, the product ideal for a wide range of applications.
Download
Key Features
Frequency Range (GHz) | 27.0 to 32.0
|
Output Power (dBm) | 43
|
Small Signal Gain (dB) | 40
|
Operating Voltage | 20 VDC
|
Package Dimensions (L×W×H) | 80×60×12 mm
|
Connectors | SMA Female |
Specification
Frequency Start (GHz) | 27.0
|
Frequency Stop (GHz) | 32.0
|
Output Power (dBm) | 43
|
Gain (dB) | 40
|
Gain flatness (dB) | ±1.5
|
VSWR IN | 1.6:1
|
Power supply (V) | 20 VDC
|
Current (A) | 7.9
|
Max. Input DC (no damage) (V) | 24
|
Max. RF input power (dBm) | 15
|
Operating Temperature (°C) | -45 to 85
|
Storage Temperature (°C) | -55 to 125 |
Applications
· Wireless communication equipment
· Test and measurement equipment
· Navigation and aerospace
· Commercial radars
· General-purpose transmitter amplification

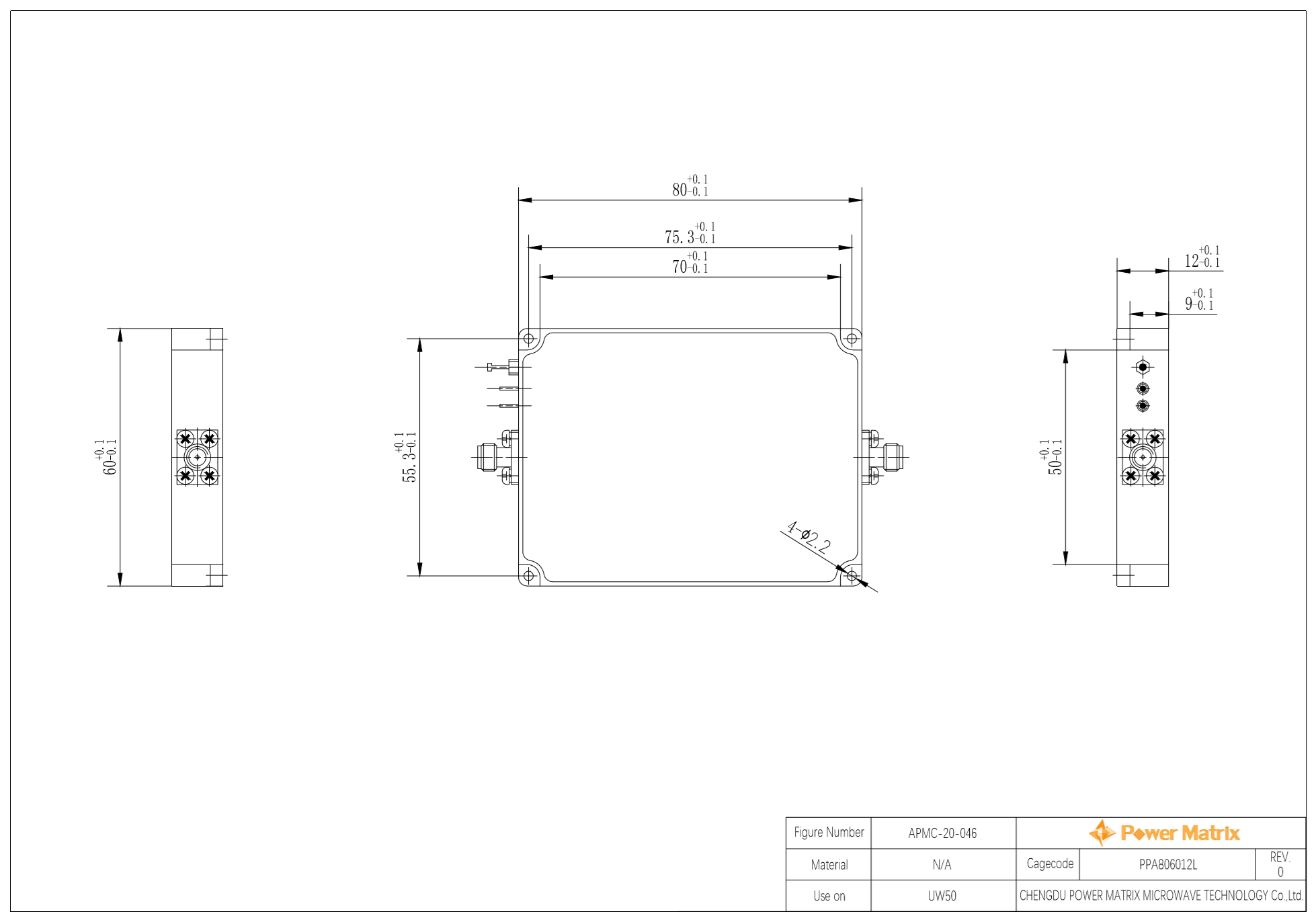

Outline Drawing
