The PPA-0500-0600-39 is a High Power Amplifier providing an output power of 39 dBm and a gain of 44 dB. With compact package size, modularity and reliable quality, the product ideal for a wide range of applications.

Frequency Range (GHz)	5.0 to 6.0
Output Power (dBm)	39
Small Signal Gain (dB)	44
Operating Voltage	28 VDC

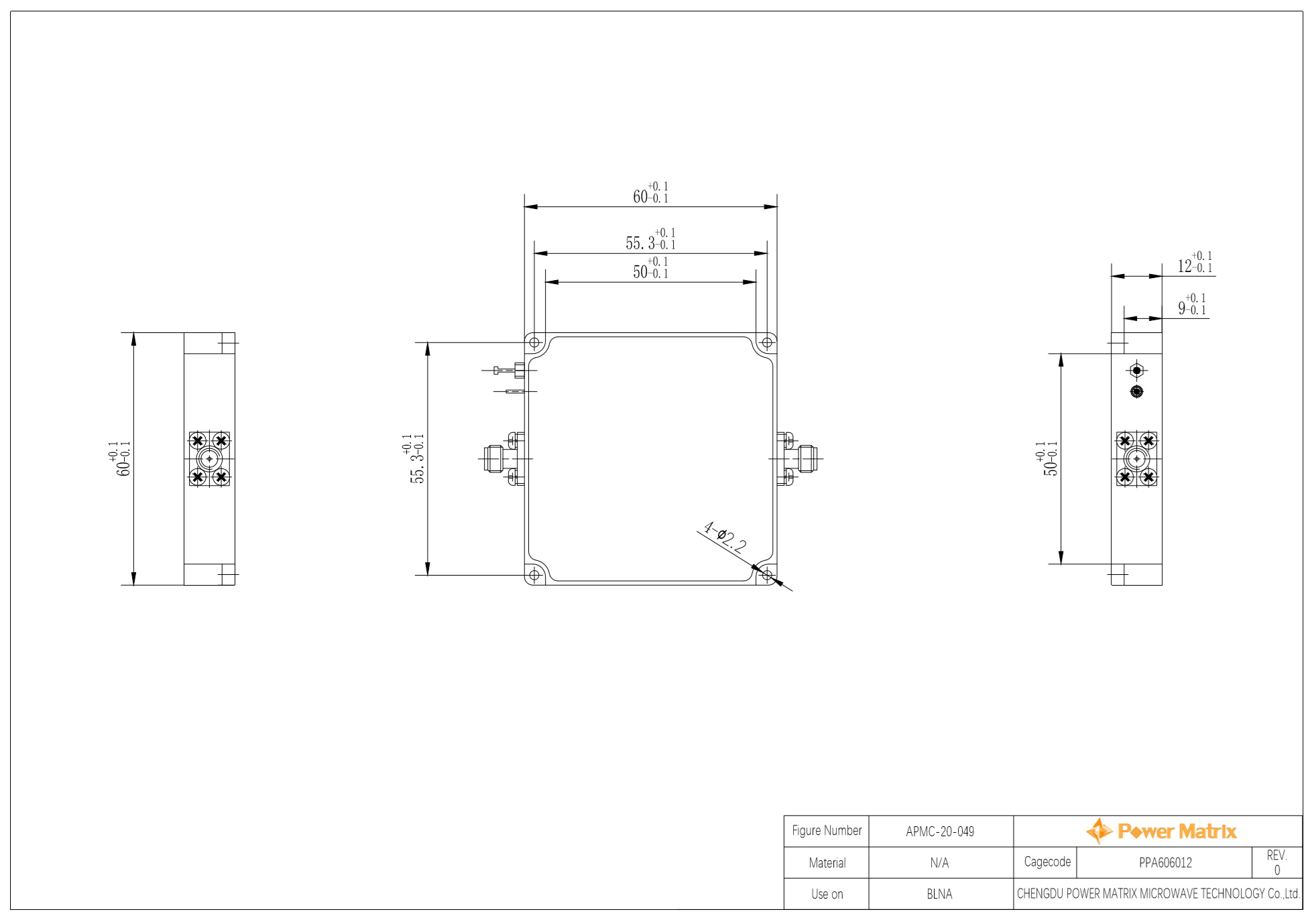

Package Dimensions (L×W×H)	60×60×12 mm
Connectors	SMA Female

Frequency Start (GHz)	5.0
Frequency Stop (GHz)	6.0
Output Power (dBm)	39
Gain (dB)	44
Gain flatness (dB)	±1.5
VSWR IN	1.6:1
Power supply (V)	28 VDC
Current (A)	0.95
Max. Input DC (no damage) (V)	35
Max. RF input power (dBm)	15
Operating Temperature (°C)	-45 to 85
Storage Temperature (°C)	-55 to 125

· Wireless communication equipment
· Test and measurement equipment
· Navigation and aerospace
· Commercial radars
· General-purpose transmitter amplification
